HLC- Products

Products of the "Hanazeder Logic Control family"

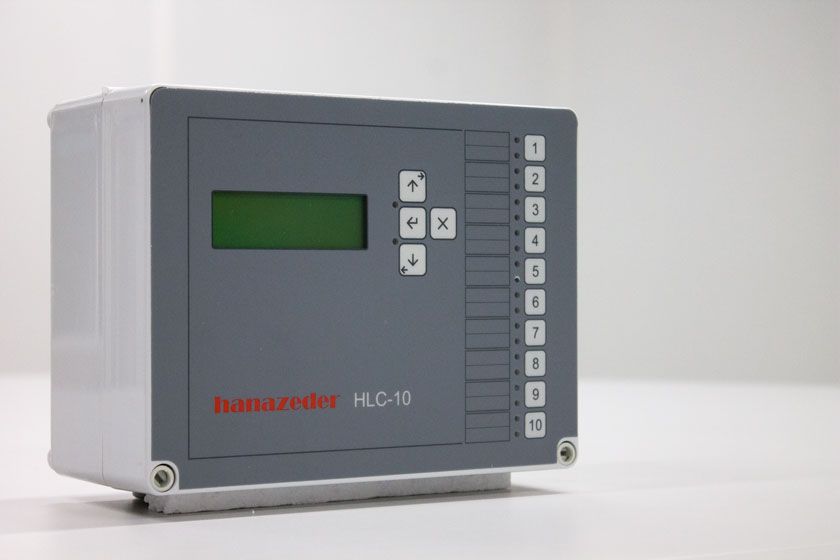

HLC-10

A programmable home automation controller

​digital Outputs analog Outputs universal Inputs digital Inputs
​10 ​4 ​16 ​4

Bus connection for expansion via CAN bus

Network Connection

Integrated data logger

10 programmable function keys and display (not included in version for cabinet installation)

Includes software for programming and visualization

For much larger projects, the controller is also available in a version with more program memory. Please contact us if interested.


HLC IO Extention

Input and output expansion for HLC control

​digital Outputsanalog Outputsuniversal Inputsdigital Inputs
​6​6​8​4

24V DC power supply

Suitable housing for DIN rail mounting

Connection to HLC control via CAN bus



HLC-EA-485-MOD

MOD-Bus extension module for HLC control.

At the 2 MOD bus interfaces (RS485 RTU) up to 32 devices can be connected.

24V DC power supply

Connection to HLC control via CAN bus

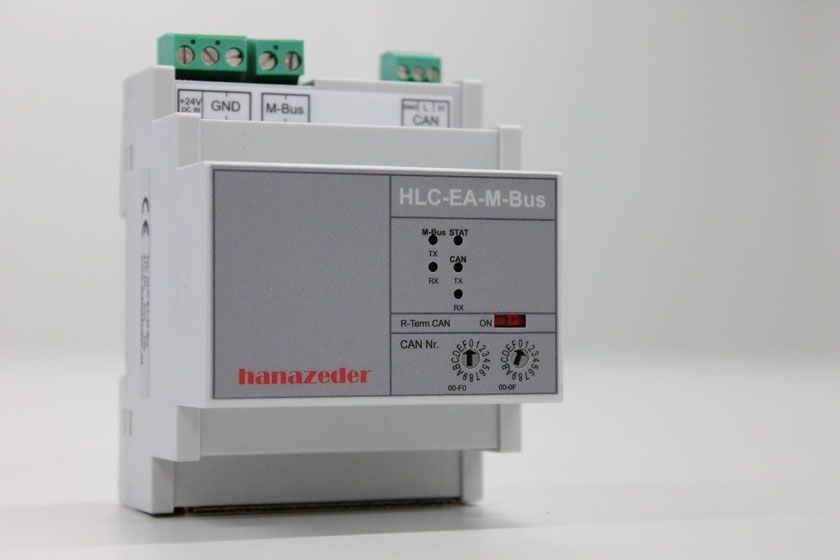

HLC-M-Bus Modul

M-Bus extension module for HLC control.

A maximum of 10 M-Bus devices can be connected to the M-Bus interface of the expansion module.

24V DC supply voltage

Connection to HLC control via CAN bus

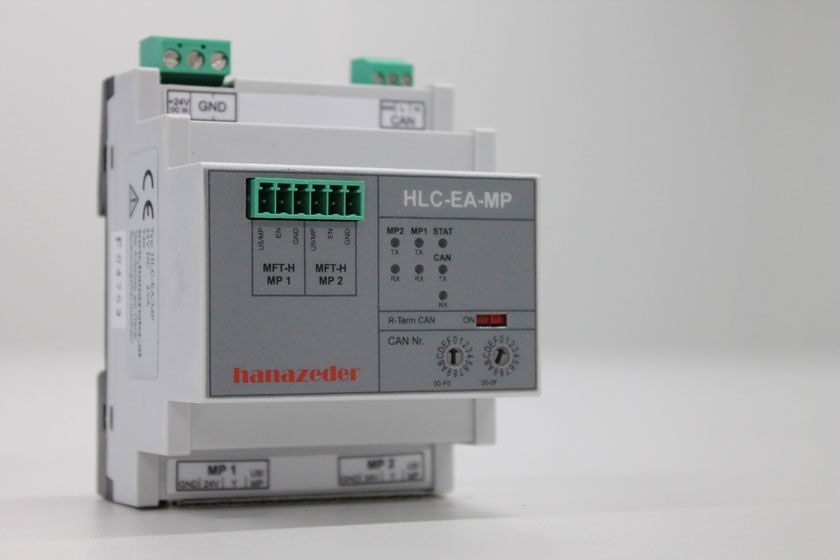

HLC-EA-MP

MP-Bus extension for HLC controller. With this Belimo MP-Bus extension, devices such as actuators and dampers are connected to the HLC.

24V DC power supply

Connection to HLC control via CAN bus

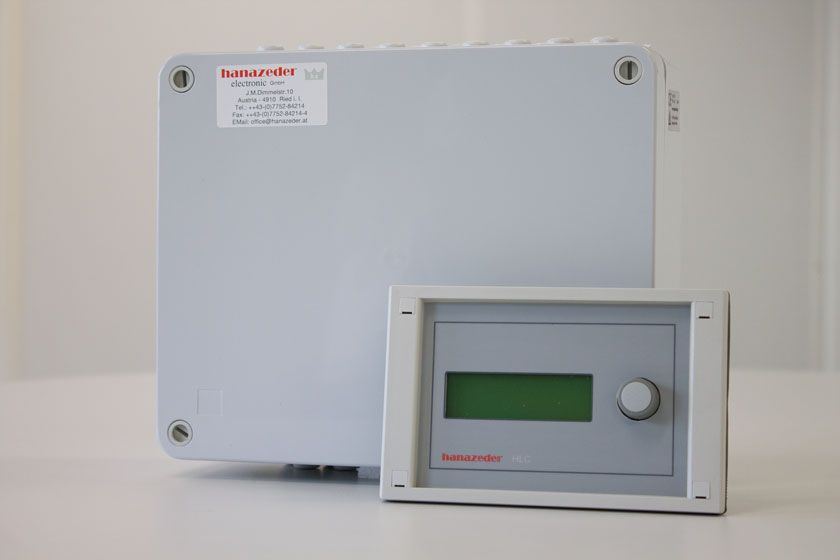

Control unit for HLC

Room control unit for the remote control of the HLC. With multifunction radio control.

Especially suitable for installation in switch cabinets.

24V DC power supply

Connection to HLC control via internal RS485 bus


HLC 20

A programmable home automation controller
​digital Outputsanalog Outputsuniversal Inputsdigital Inputs
​20​3​26​4
Programming with HLC ProgrammerConnection to PC via serial port 230V AC power supply


Accessories

Of course you can also get various accessories for engineering projects directly with us...

  • Different room control units
  • Cable Sensors
  • Immersion or duct sensors
  • Humidity or air quality sensors
  • Contact sensors
  • Outdoor sensors
  • and much more.

If you have any questions concerning accessories please contact us: support@hanazeder.at
